Parts List Complete for KAIVAC KAIVAC 2150


Spray Gun Assembly - 225-0006
RefNbr Part Number Description Req Notes
000a 225-0173 Spray gun assembly with 1/32 inch nozzle 1 (assembly includes 001-005 and not shown) (OEM)
000b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
001 225-0086 Spray gun 1
002 225-0087 Quick disconnect plug 1/4 1
003a 225-0089 Idrojet nozzle 1
003b 991-3093 #2.0 variable nozzle 1
004 225-0089 Idrojet nozzle 1
005 225-0091 Nipple 1/4 close 1
N/S 225-0090 Gun nozzle bearing 1
N/S 225-0303 Mini ball valve 1

Squeegee Tool Assembly - 225-0052
RefNbr Part Number Description Req Notes
001 225-0062 Plastic wheel 2
002 225-0063 Wheel holder 2
003 225-0064 Holder screw 2
004 225-0017 14 1/2 inch squeegee tool with wheels 1 (includes 001 and 004-006)
005 225-0065 Squeegee blade 14 1/4 inch 2
006 225-0546 Vac wand coupler (black) 1
007 225-0067 Metal ring 1
008 225-0547 Vac wand nut (black) 1
N/S 225-0069 Glides 2 (optional) (replaces wheel and wheel holder)
N/S 225-0018 Aluminum vacuum wand (2 piece) 1
N/S 225-0071 Stainless steel squeegee wheel with holder 2

Pressure Hose Assembly - 225-0065
RefNbr Part Number Description Req Notes
000a 225-0010 500PSI 45 foot pressure hose assembly (2 female connectors) 1 (OEM)
000b 991-2429 1/4 inch 45 foot hose with fittings and valve 1 (NON-OEM)
001 225-0304 O-ring for 1/4 inch qd coupler 1
002 225-0194 1/4 quick disconnect coupler 1
003 225-0303 Mini ball valve 1
004 225-0059 3/8 quick disconnect coupling 1
005 225-0305 O-ring for 3/8 inch qd coupler 1

Accessories - 225-0067
RefNbr Part Number Description Req Notes
001a 225-0173 Spray gun assembly with 1/32 inch nozzle 1 (OEM)
001b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
003 225-0004 Window squeegee 1
004 172-2913 5 inch drain tool 1
005 225-0037 Metering tip pack 1 (includes (2) 225-0038, (2) 225-0041, (2) 225-0039, (2) 225-0040, (1) 225-0033, (1) allen wrench, and (1) chemical line cover)
006 225-0041 Tan metering tips 1
007 225-0040 Black metering tip 1
008 225-0039 Aqua metering tip 1
009 225-0038 Orange metering tips 1
010a 225-0297 33 foot slinky vacuum hose assembly 1 (OEM)
010b 991-7122 33 foot vacuum hose with cuffs 1 (NON-OEM)
011 225-0134 50 foot vacuum hose assembly (OBSOLETE) 1
012 225-0297 33 foot slinky vacuum hose assembly 1
013 225-0005 Blow nozzle 1
014a 225-0010 500PSI 45 foot pressure hose assembly (2 female connectors) 1 (OEM)
014b 991-2429 1/4 inch 45 foot hose with fittings and valve 1 (NON-OEM)
015a 225-0253 Old 50 foot pressure hose assembly (1 male/female connector) 1
015b 225-0316 Pressure hose adapter 1 (use to connect two pressure hoses together)
016a 225-0020 50 foot extension cord with GFCI (yellow) 1 (OEM)
016b 991-7120 12/3 extension cord 50 foot with GFCI (yellow) 1 (NON-OEM)
017 208-0052 GFCI receptacle 1
018 225-0019 2 Piece vacuum wand and squeegee head assembly 1
019a 225-0017 14 1/2 inch squeegee tool with wheels 1
019b 225-0065 Squeegee blade 14 1/4 inch 1
020a 225-0018 Aluminum vacuum wand (2 piece) 1
020b 225-0546 Vac wand coupler (black) 1
020c 225-0067 Metal ring 1
020d 225-0547 Vac wand nut (black) 1
020e 225-0538 Vacuum wand (1 piece) 1
020f 225-0547 Vac wand nut (black) 1
020g 225-0546 Vac wand coupler (black) 1
021 225-0292 Mesh bag 1
022 225-0003 Deck brush (blue) (brush only) 1
023 225-0006 Brush handle - HANDLE ONLY 1
024 225-0405 Universal fill hose 1
025 225-0336 Kai-grouter tool 1
026 225-0414 Chemical bottle plug 1
027 225-0434 28 inch squeegee assembly 1 (education only)
028 225-0441 8 inch swivel brush 1
029 225-0479 Squeegee/brush tool 1
030 225-0528 28 inch hard surface tool 1
031 225-0529 Dry vac retro kit 1
032 225-0530 KaiTurbine dry vac head 1
033 225-0540 Carpet extraction brush 1
034a 225-0551 10 inch squeegee head with wheels 1
034b 225-0554 10 inch replacement squeegee blade 1
035 225-0553 Ergo speed spreader 1
036 N/A Not available 1 (squeegee blade)
037 225-0552 VAC BRUSH REPLACEMENT 1
038 225-0315 Tote bag 1
039 225-0436 Flip top cap 1
040 225-0442 Telescopic brush handle 1
041 225-0534 One piece vacuum wand with strap and grout brush 1
042 225-0550 Long barrel pressure gun (OBSOLETE) 1
043a 225-0439 25 foot vacuum hose 1 (OEM)
043b 991-7132 25 foot vacuum hose 1 (NON-OEM)
044 225-0593 45 foot slinky vacuum hose assembly 1
045a 225-0413 Deluxe carpet extractor wand 1
045b 991-8039 1/4 inch brass vee jet 11003 1
046 225-0589 ARAMARK Metering tip kit 1 (includes (2) 225-0039, (2) 225-0040, (2) 225-0585, (2) 225-0586, (2) 225-0587, (2) 225-0588, (2) 225-0581 and instruction sheet)
047 225-0125 Upholstery tool assembly 1
048 225-0440 20 foot stretch vacuum hose 1
N/S 225-0549 Check valve 1
N/S 225-0651 Vacuum wand and hose kit 1
N/S 225-0468 Gatling gun grouter complete 1
N/S 225-0120 Stainless steel trigger valve 1 (For the Gatling grouter tool wand)
N/S 225-0070 Dry vacuum brush head 1
N/S 225-1117 1250 accessory kit (1200 Series)
N/S 225-0541 Trowel 1

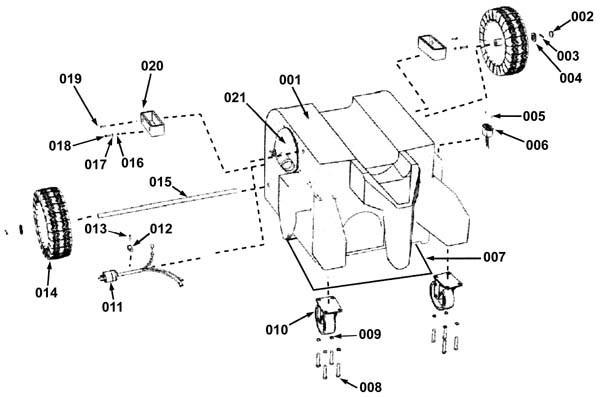

Base Assembly - 225-0082
RefNbr Part Number Description Req Notes
001 225-0392 Base assembly 1
002 225-0025 Nut 5/8 push cap 2
003 225-0235 Cotter pin 2
004 999-0349 Washer 5/8 SAE flat 2
005 997-1000 Pop rivet 1/8 x 5/8 2
006 225-0393 Hour meter 1
007a 225-0325 Bottom plate (OBSOLETE) 1 (before SN 2247)
007b 225-0391 Bottom plate (OBSOLETE) 1 (after SN 2246)
008 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
009 999-0028 Washer 5/16 split lock plain finish 8
010 225-0255 5 inch caster wheel 2
011a 225-0375 12/3 pigtail cord with plug 22 inch 1 (before SN 2247)
011b 225-0375 12/3 pigtail cord with plug 22 inch 1 (after SN 2246)
012 225-0176 3/8 inch cable clamp 1
013 225-0012 Screw #8 self drilling 1
014 225-0022 10 inch pneumatic wheel with 5/8 hub 2
015 225-0024 Axle 5/8 x 23 inch 1
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
017 999-0123 Washer 1/4 SAE flat zinc plated 2
018 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
019 225-0012 Screw #8 self drilling 1
020 225-0237 Tray 1
021b 225-0562 HEPA cover 1 (after SN 2246)

Pump Motor Assembly - 225-0083
RefNbr Part Number Description Req Notes
001 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
002 225-0107 5/16 u-nut 4
003 225-0241 Hose barb 3/8 x 1/2 inch 1
004 225-0165 Hose clamp 1
005 225-0395 Water line 1
006 225-0369 90 degree hose barb 3/8 inch 1
007 225-0165 Hose clamp 1
008 225-0396 Return water line 1
009 225-0058 Pulse hose 1
010 225-0372 Jumper wire (black) 1
011 225-0371 Jumper wire (white) 1
012 225-0059 3/8 quick disconnect coupling 1
013 225-0421 Pump motor 1 (motor, bracket and rectifier only)
N/S 225-0390 Rectifier 1
N/S 225-0537 Pump head 1
N/S 225-0332 Complete pump assembly 1 (includes the pump head and motor)

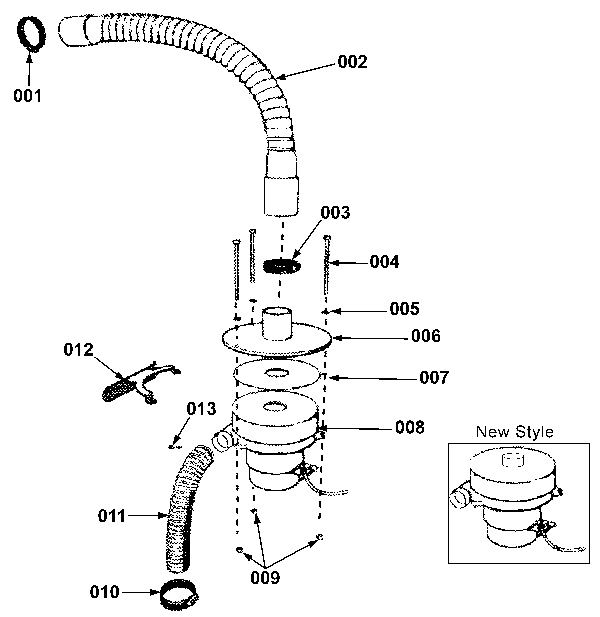

Vacuum Motor Assembly - 225-0084
RefNbr Part Number Description Req Notes
001 997-2003 Hose clamp 1
002 225-0397 Vac motor hose 1
003a 997-2003 Hose clamp 1 (before SN 1256)
003b 225-0127 Hose clamp 1 (after SN 1257)
004 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 3
005 999-0123 Washer 1/4 SAE flat zinc plated 3 (before SN 1256)
006 N/A Not available 1 (before SN 1256) Vac motor plate is no longer available. Customer will need to replace the vacuum motor with 225-0388 so hose will connect directly to the motor.
007 225-0188 Gasket 1 (before SN 1256)
008a 225-0388 120V 3 stage vacuum motor with inlet tube and gasket 1 (OEM) (This now comes with a new float that has to be replace the existing float to maintain warranty. Remove the vacuum tank lid, then unscrew existing float - cylindrical wire mesh hanging from top and inside vacuum tank - Screw in the new float provided until snug) (includes 008c and 008d)
008b 225-2082 120V vac motor 1
008c 225-0306 Float 1
008d 225-0188 Gasket 1
009 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
010 225-0127 Hose clamp 1
011 225-0400 Vac exhaust hose 18 inch 1
012 225-0276 Motor bracket 1
013 225-0012 Screw #8 self drilling 1

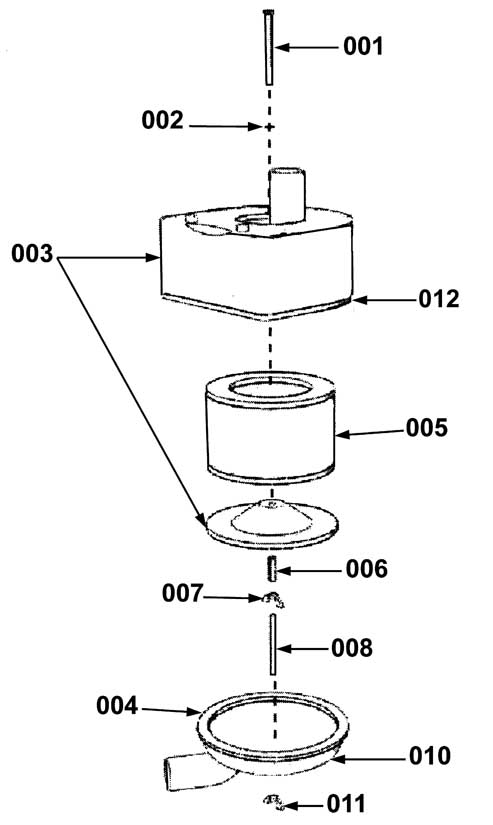

HEPA Filter Assembly - 225-0085
RefNbr Part Number Description Req Notes
001 225-0357 Bolt 1/4 x 2 1/2 inch carriage head 1
002 225-0401 O-ring 2
003 N/A Not available 1 (HEPA housing and filter keeper)
004 225-0236 Tank lid gasket 1
005 225-0358 HEPA filter 1
006 225-0359 1/4 inch coupling nut 1
007 225-0361 Wing nut 1
008 225-0360 Threaded stud 1
011 225-0361 Wing nut 1
012 225-0236 Tank lid gasket 1

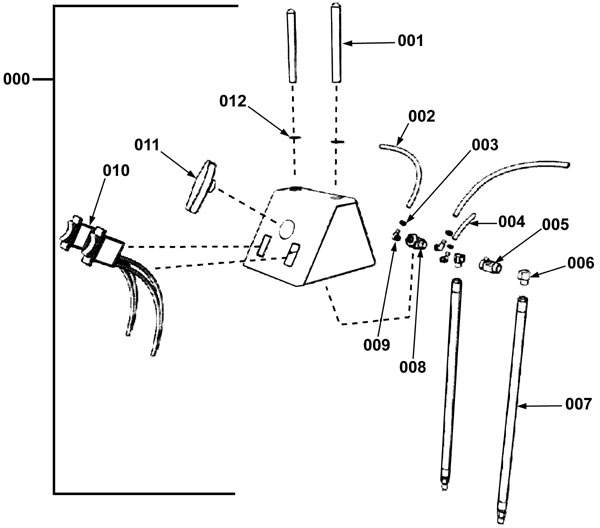

Control Panel Assembly - 225-0086
RefNbr Part Number Description Req Notes
000a 225-0011 Electrical box and chemical line assembly (2 2-way switches) 1
000b 225-0429 Electrical box and chemical line assembly (1 2-way, 1 3-way) 1
000c 225-0074 Switch box (cover only) 1
001 999-1123 Screw 1/4-20 x 4 flat head phillips stainless steel 2
002 225-0403 Braided hose 1/4 inch x 2 ft 2
003 225-0082 Hose clamp 5
004 225-0048 1/4 inch chemical hose (sold by the foot) 1
005 225-0077 Injector 1
006 225-0083 90 degree straight elbow 2
007 225-0054 Herc hose assembly 2
008 225-0076 3 way chemical valve with knob 1
009 225-0075 90 degree 1/8 inch male fitting 3
010 225-0072 Rocker switch 2
011 225-0084 Knob (black) 1
012 999-0123 Washer 1/4 SAE flat zinc plated 2

External Parts Assembly - 225-0087
RefNbr Part Number Description Req Notes
1 172-2913 5 inch drain tool
2 225-0003 Deck brush (blue) (brush only)
3 225-0004 Window squeegee
4 225-0017 14 1/2 inch squeegee tool with wheels
5 225-0018 Aluminum vacuum wand (2 piece)
6 225-0043 Drain hose assembly
7a 225-0173 Spray gun assembly with 1/32 inch nozzle (OEM)
7b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
8 225-0325 Bottom plate (OBSOLETE)
9 225-0339 75 foot x 3/8 inch pressure hose assembly (OEM)
10 991-7131 75 foot x 1/4 inch pressure hose assembly (NON-OEM)
12 225-0404 Fill hose adapter
13 225-0405 Universal fill hose
14 225-0020 50 foot extension cord with GFCI (yellow)

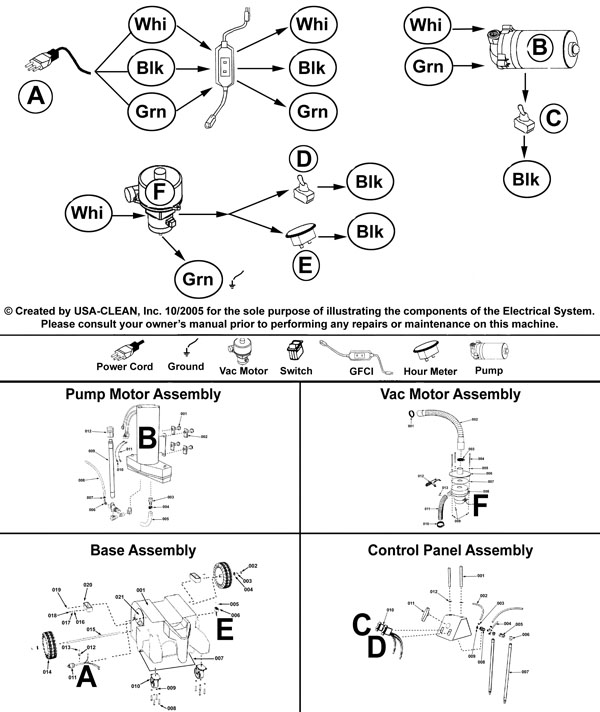

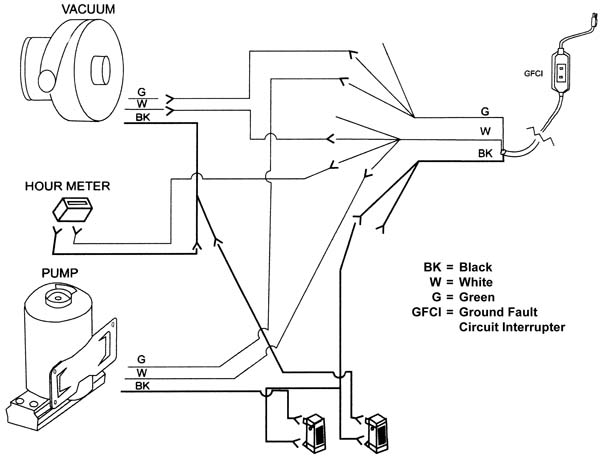

Wiring Diagram - Before SN 1257 -

RefNbr Part Number Description Req Notes

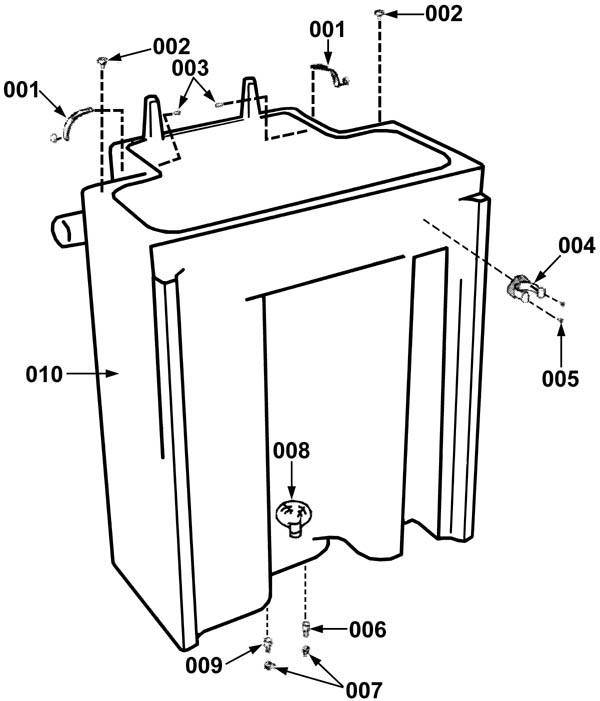

Water Tank Assembly - 225-0090
RefNbr Part Number Description Req Notes
001 225-0013 Wrap and snap assembly 2
002 225-0014 Snap stud 2
003 225-0012 Screw #8 self drilling 1
004 225-0015 Clamp #13 2
005 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 6
006 225-0344 Hose barb 3/8 inch brass 1
007 225-0165 Hose clamp 2
008 225-0331 Water line filter 1
009 225-0241 Hose barb 3/8 x 1/2 inch 1
010 225-0409 Water tank assembly 1

Vacuum Tank Assembly - 225-0091
RefNbr Part Number Description Req Notes
001 225-0049 Float shut off assembly 1
002 225-0093 2 inch plastic ball 1
003 225-0096 O-ring 2
004 225-0095 Filter bag 1
005 225-0050 Standpipe assembly 1
006 225-0354 6 inch tank lid (black) 1 (before SN 1257)
007 225-0145 Screw 3/4 inch stainless steel 6 (before SN 1257)
008a 225-0011 Electrical box and chemical line assembly (2 2-way switches) 1
008b 225-0429 Electrical box and chemical line assembly (1 2-way, 1 3-way) 1
009 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 2
010 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
011 225-0015 Clamp #13 1
012a 225-0043 Drain hose assembly 1 (before SN 2247)
012b 225-0043 Drain hose assembly 1 (after SN 2246)
013 997-2003 Hose clamp 1
014 225-0410 Vacuum tank assembly 1 (for Kaivac 2150, the customer needs to verify if they have a single or dual chemical model as this only works for dual models and there is no longer an option for the single chemical model)
015 225-0034 Clamp #15 1
016 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 1
017 225-0236 Tank lid gasket 1
018a 225-0560 Jug holder vac lid assembly 1 (after SN 1256 and before SN 2247)
018b 225-0560 Jug holder vac lid assembly 1 (after SN 2246)

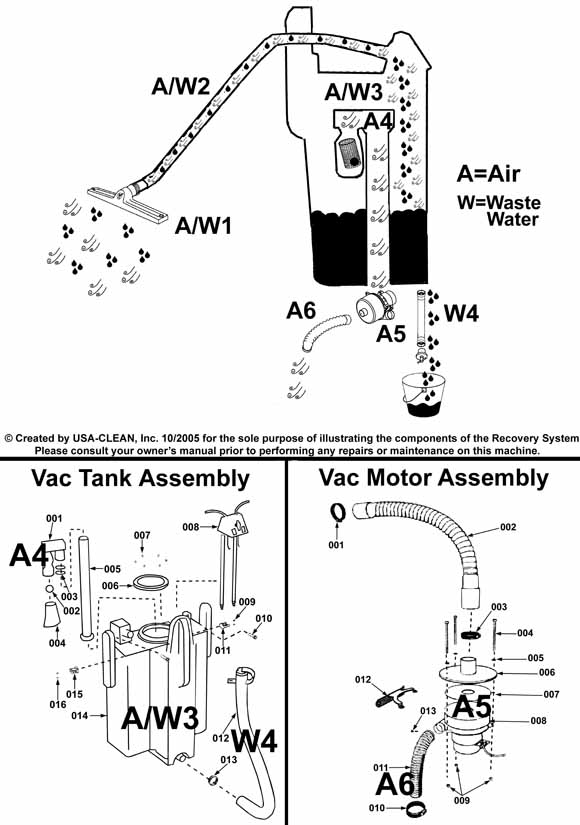

--Simplified Recovery System -

RefNbr Part Number Description Req Notes

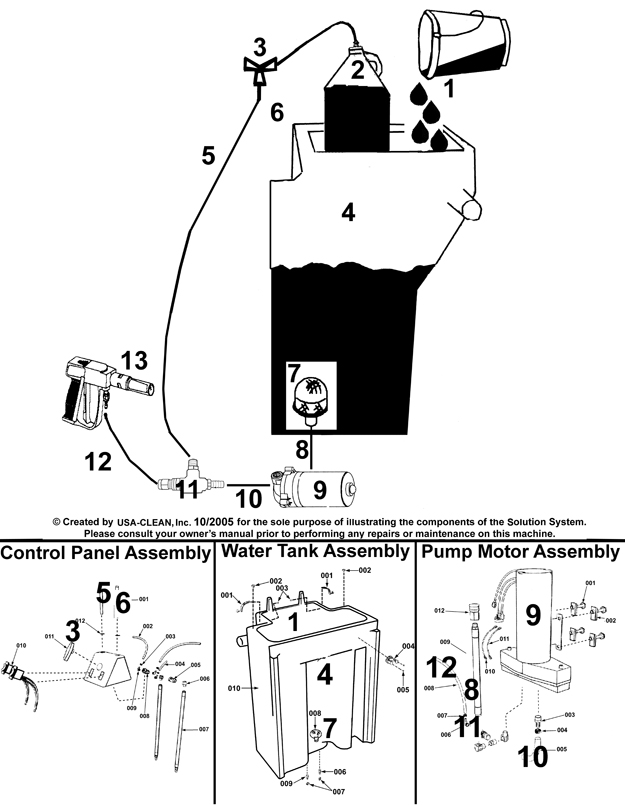

--Simplified Solution System -

RefNbr Part Number Description Req Notes

Dry Vacuum Assembly - After SN 1256 - 225-0100
RefNbr Part Number Description Req Notes
001 225-1015 Cover assembly with cover seal (OBSOLETE) 1
002 225-0605 Cover latch 1
003 225-1013 Dry vacuum housing 1
004 997-1000 Pop rivet 1/8 x 5/8 3
005 225-0154 Rivet backup plate 3
006 225-0525 Cloth filter bag 1
007 225-0526 Paper filter bag 1
008 225-1016 Plastic cap 1
009 225-0236 Tank lid gasket 1
010 225-0118 Tie wrap 1

Wiring Diagram - After SN 1256 -

RefNbr Part Number Description Req Notes

--Simplified Electrical System -

RefNbr Part Number Description Req Notes

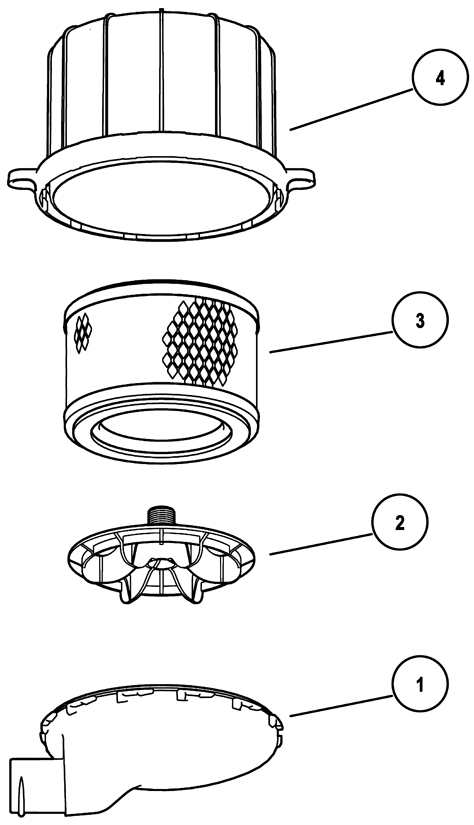

HEPA Housing Assembly - 225-1014
RefNbr Part Number Description Req Notes
1 225-0562 HEPA cover 1
2 225-0563 HEPA filter keeper 1
3 225-0358 HEPA filter 1
4 225-0564 HEPA filter housing 1

- Commonly Asked For Parts - 225-9993
RefNbr Part Number Description Req Notes
1 172-2913 5 inch drain tool
2 225-0003 Deck brush (blue) (brush only)
3 225-0004 Window squeegee
4 225-0005 Blow nozzle
5 225-0006 Brush handle - HANDLE ONLY
6 225-0011 Electrical box and chemical line assembly (2 2-way switches)
7 225-0015 Clamp #13
8 225-0017 14 1/2 inch squeegee tool with wheels
9 225-0018 Aluminum vacuum wand (2 piece)
10 225-0037 Metering tip pack (metering tip package includes 2 of each colored metering tip, a chemical cap, plastic safety cap, and allen wrench)
11 225-0043 Drain hose assembly
12a 225-0173 Spray gun assembly with 1/32 inch nozzle (OEM)
12b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
13 225-0188 Gasket
14 225-0336 Kai-grouter tool
15 225-0339 75 foot x 3/8 inch pressure hose assembly (OEM)
16 991-7131 75 foot x 1/4 inch pressure hose assembly (NON-OEM)
17 225-0385 500PSI pump and motor assembly
18 225-0388 120V 3 stage vacuum motor with inlet tube and gasket (this now comes with a new float that has to be replace the existing float to maintain warranty. Remove the vacuum tank lid, then unscrew existing float - cylindrical wire mesh hanging from top and inside vacuum tank - Screw in the new float provided until snug)
19 225-0391 Bottom plate (OBSOLETE)
20 225-0020 50 foot extension cord with GFCI (yellow)
21 225-0275 PVC Primer

- Frequently Replaced Parts - 999-5028
RefNbr Part Number Description Req Notes
1 225-0375 12/3 pigtail cord with plug 22 inch (OEM)
2 991-5010 12/3 extension cord 100 foot with twist lock (yellow)(OBS) (NON-OEM)
3 225-0020 50 foot extension cord with GFCI (yellow)
4 225-0084 Knob (black)
5 225-0072 Rocker switch (2) (vacuum and pump)
6 225-0388 120V 3 stage vacuum motor with inlet tube and gasket (This now comes with a new float that has to be replace the existing float to maintain warranty. Remove the vacuum tank lid, then unscrew existing float - cylindrical wire mesh hanging from top and inside vacuum tank - Screw in the new float provided until snug) (OEM)
7 991-1213 120V 3 stage vacuum motor tangential (NON-OEM)
8 225-0385 500PSI pump and motor assembly
9 225-0076 3 way chemical valve with knob
10 225-0331 Water line filter
11 225-0049 Float shut off assembly
12 225-0255 5 inch caster wheel
13 225-0022 10 inch pneumatic wheel with 5/8 hub
14 225-0354 6 inch tank lid (black)
15 225-0043 Drain hose assembly
16a 225-0339 75 foot x 3/8 inch pressure hose assembly (OEM)
16b 991-7131 75 foot x 1/4 inch pressure hose assembly (NON-OEM)
17a 225-0173 Spray gun assembly with 1/32 inch nozzle (OEM)
17b 991-3023 Spray gun assembly with 1/32 inch nozzle 1 (NON-OEM)
18a 225-0416 40 foot vacuum hose (OEM)
18b 991-7133 40 foot vacuum hose (NON-OEM)
19 225-0018 Aluminum vacuum wand (2 piece)
20 225-0017 14 1/2 inch squeegee tool with wheels
21 225-0336 Kai-grouter tool
22 225-0006 Brush handle - HANDLE ONLY
Webpage Problem Reporting
