Parts List Complete for taski swingo 1255b

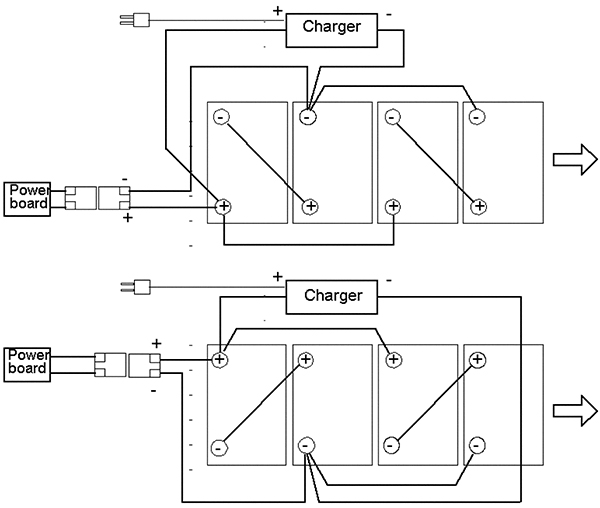

Battery Connections Diagram -

RefNbr Part Number Description Req Notes

- Know Your Machine -

RefNbr Part Number Description Req Notes

Battery Hookup Chart -

RefNbr Part Number Description Req Notes

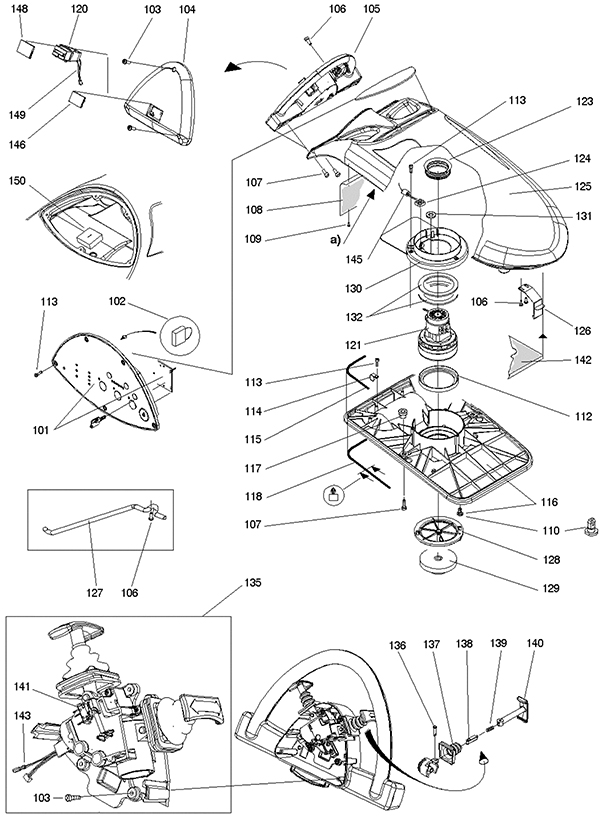

Upper Assembly - 192-9035
RefNbr Part Number Description Req Notes
101 192-9499 Electronic dashboard assembly (power) 1
102 192-9328 Jumper (OBSOLETE) 1 (series 1)
103 192-1595 Screw M40 x 16mm torx head 7
104 192-8941 Handle cover 1
105 192-1587 Handle 1
106 192-1561 Screw 60 x 20 torx head 6
107 192-1557 Screw 60 x 35 torx head 6
108 192-8942 Protection shield 1
109 192-1559 Retaining rivet 4
110 192-8753 Flange bolt 2
112 192-1562 Guide ring 1
113 192-1571 Screw M50 x 16mm 9
114 192-2501 P clamp 1
115 192-6310 Seal strip (sold by the inch) 61 in
116 192-1908 Base plate 1
117 192-1575 Buffer 2
118 192-6334 Sealing profile (sold by the inch) 80 in
120 192-0033 24V hour meter 1 (optional)
121a 192-0770 24V 2 stage vacuum motor 1 (series 1)
121b 292-8095 24V 16amp vacuum motor 1 (series 2)
123 192-1569 Sealing ring 1
124 192-0260 2-way connection block 1
125 192-9555 Tank cover 1
126 192-4812 Locking lever 1
127 192-9502 Prop rod 1
128 192-3617 Filter 1
129 192-1490 Float 1
130 192-1570 Protection plate 1
131 192-8948 Bushing 1
132 192-1573 Gasket 2
135 192-5014 Mechanic hall sensor assembly 1 (includes 103, 141, 143)
136 192-1582 Bolt 2
137 192-1977 Bellows 2
138 192-1584 Grid lever 2
139 192-1585 Pressure spring 2
140 192-6954 Switch lever 2
141 192-8721 Microswitch 1
142 192-5255 Noise absorbing plate 1
143 192-8892 6-way ribbon cable 1
145 192-0732 Ferrite bushing 1
146 192-3548 False cover 1
148 192-8944 Cover 1 (optional)
149 192-9486 Wiring harness 1 (optional)
150 292-8608 Gasket 1
N/S 192-0973 3 1/4 inch cable tie 1

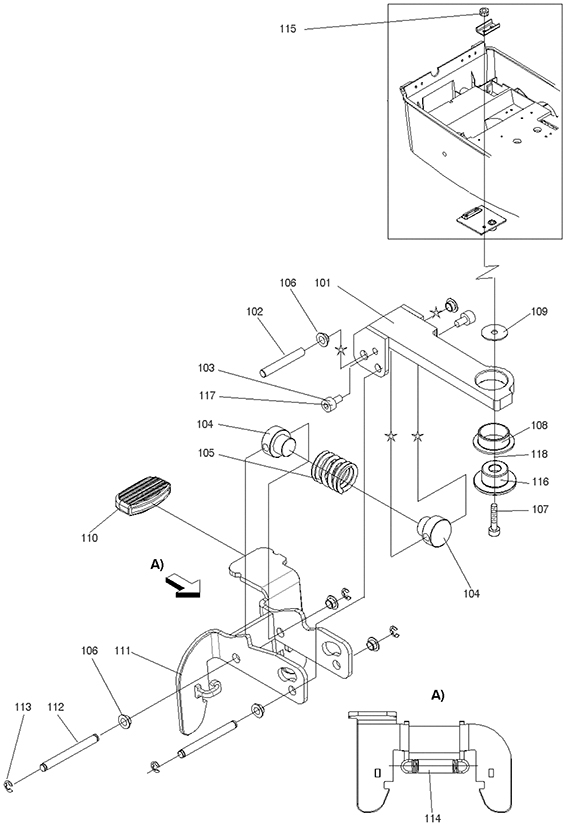

Squeegee Lift Assembly - 192-9036
RefNbr Part Number Description Req Notes
101 192-9556 Swing arm 1
102 192-9505 Axle 1
103 192-0364 Screw M8 x 12mm socket head 2
104 192-9506 Bolt 2
105 192-9508 Pressure spring 1
106 192-6448 Slide bearing 6
107 192-8911 Screw M10 x 40mm socket head cap 1
108 192-9507 Slide bearing 1
109 192-9557 Washer 1
110 192-8983 Pedal pad 1
111 192-9509 Pedal weldment 1
112 192-9510 Axle 2
113 192-0840 Snap ring 4
114 192-9511 Tension spring 1
115 192-6339 Nut M10 self locking 1
116 192-9530 Bushing 1
117 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
N/S 192-1872 Grease 1

Squeegee Assembly - Series 1 - 192-9037
RefNbr Part Number Description Req Notes
101 192-9558 Squeegee assembly 1 (includes 102-132)
102 192-0104 Screw M8 x 45mm socket head cap 2
103 192-0105 Washer M8 2
104 192-1397 Guide wheel 2
105 192-0108 Retaining disc 2
106 192-1344 Wave washer 2
107 192-1354 Bushing 2
108 192-9559 Long rear squeegee strap 1
109 192-9514 Left rear squeegee strap 1
110 192-0206 Washer M5 2
111 192-1003 Screw M5 x 35mm raised cheese head torx 2
112 192-1524 Screw M8 x 20mm flange socket head 2
113 192-9515 Cover 1
114 192-9516 Click spring 1
115 192-6339 Nut M10 self locking 2
116 192-0496 Washer M10 2
117 192-9517 Rear right squeegee strap 1
118 192-8746 Wheel 2.5 x 1 inch 1
119a 192-9215 Axle 1
119b 292-8609 Bolt M8 x 10mm 1 (option)
120 192-0101 Screw M5 x 12mm self tapping form 2
121 192-9560 Squeegee weldment 1
122a 192-1484 Squeegee blade 33 3/4 inch rear 1
122b 292-8032 Squeegee blade 1
123a 192-1483 Squeegee blade 32 1/4 inch front 1
123b 192-9563 Squeegee blade front 1
123c 292-8031 Squeegee blade 1
124 192-9561 Front squeegee strap 1
129 192-9520 Caster wheel 2
131 292-8611 Washer 2
132 192-0971 Washer 2

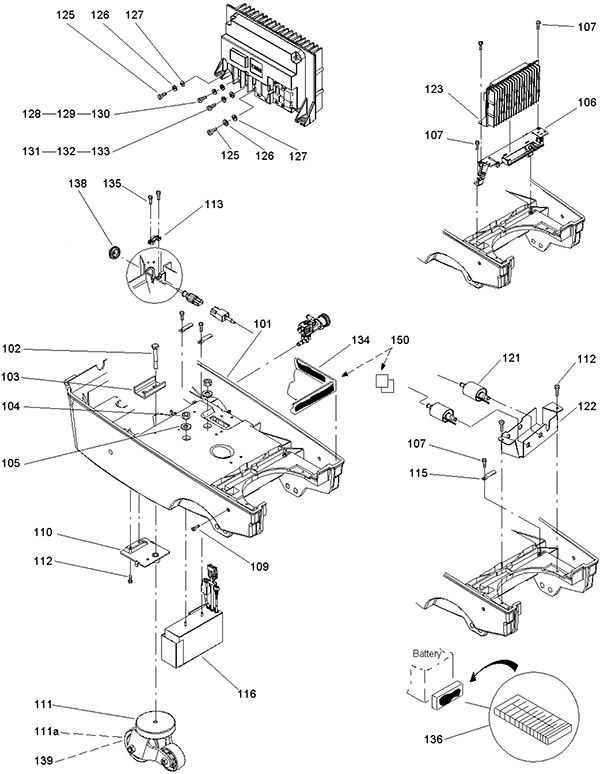

Lower Assembly - 192-9038
RefNbr Part Number Description Req Notes
101 192-2756 Chassis 1
102 192-4218 Screw M12 x 30mm hex head 1
103 192-1517 Reinforcement plate 1
104 192-0563 Nut M6 self-locking 2
105 192-0216 Washer 2
106 192-9309 Electronic support bracket 1
107 192-1571 Screw M50 x 16mm 7
109 192-1524 Screw M8 x 20mm flange socket head 2
110 192-2167 Bracket 1
111a 292-1034 Complete castor 1
111b 192-6380 Caster replacement wheel (brown) (pkg of 2) 1 (optional)
112 192-1561 Screw 60 x 20 torx head 4
113 192-2496 Cable clamp 1
115 192-2791 Clamp 3
116 292-5286 24V 25amp onboard battery charger 1
121 192-5845 24V pump 1
122 192-5865 Pump bracket 1
123 192-9532 Power electronics with wiring harness 1
125 192-0407 Screw M5 x 10mm socket head cap 2
126 192-1537 Washer M5 serrated lock 2
127 192-0880 Washer M5 2
128 192-0289 Screw M6 x 10mm socket head 1
129 192-0179 Washer M6 serrated lock 1
130 192-0200 Washer M6 1
131 192-0425 Screw M4 x 10mm socket head cap 1
132 999-0315 Washer #8 external star lock zinc plated 1
133 192-1195 Washer M4 1
134 192-7168 Battery tray 1
135 192-5462 Screw M3.5 x 20mm pan head tap 2
136 192-9238 Spacer set 1
138 292-5561 Membrane 1
139 292-0506 Wheel 2 (optional)
150 292-5395 1255 wet battery kit 1 (series 1)
N/S 192-2790 Clamp 1 (series 1)
N/S 192-1589 Fuse (slow blow) 1 (series 1)

Drive Assembly - 192-9039
RefNbr Part Number Description Req Notes
101 999-0783 Screw M8-1.25 x 16mm hex head 2
102 192-3077 Disk 2
103a 192-7505 Drive wheel (standard) (gray) 2
103b 192-3397 Nonmarking drive wheel (gray) 2 (optional)
103c 192-7160 Traction drive wheel (brown) 2 (optional)
104 192-1500 Transaxle drive unit 1
105 192-2168 Bracket 2
106 192-1509 Screw 60 x 25 torx head 4 (qty 2 for EBU model)
107 192-3209 Cradle 2 (qty 1 for EBU model)
108 192-3208 Cradle 1 (EBU model)
109 192-4651 Square keyway 2
110 192-3297 Spacer 1 (EBU model)
111 192-0158 Screw M6 x 20mm socket head cap 2 (EBU model)
112 192-0200 Washer M6 2 (EBU model)
113 192-1872 Grease 1
114 192-1153 Toroidal choke 1
115 192-2665 Carbon brush (pkg of 2) 1
N/S 192-0102 7 3/4 inch cable tie 2

Tool Lowering Assembly - 192-9040
RefNbr Part Number Description Req Notes
101 192-8903 Pedal pad 1
102 192-3822 Foot lever 1
103 192-1571 Screw M50 x 16mm 4
104 192-4018 Bracket 1
105 192-7071 Tension spring 1
106 192-5894 Rack pusher 1
107 192-8754 Clevis pin 1
108 192-9246 Cotter pin 1
109 192-1775 Axle 2 (qty 1 for EBU model)
110 192-0075 Retaining ring 4
111 192-1774 Axle 1
112 192-0086 Snap ring 3
113 192-0074 Slide bearing 1
114 192-1778 Axle 1
115 192-1776 Axle 2
116 192-4761 Lever 1
117 192-1595 Screw M40 x 16mm torx head 1
118 192-4799 Limit switch 1
119 192-1779 Axle 2
120 192-6050 Retaining ring 4
121 192-9255 Bolt 1 (EBU model)
130 192-4803 Actuator 1 (includes 134, 137)
134 192-6050 Retaining ring 2
136 192-6546 Screw 1
137 192-0347 Nut M8 hex 1
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 1 (included with 130)

Brush Drive Assembly - 192-9041
RefNbr Part Number Description Req Notes
101 192-1289 Screw M8 x 35mm socket head cap 1
102 192-0105 Washer M8 1
103 192-0329 Bumper wheel 1
104 192-1290 Bushing 1
105 192-0604 Washer M8 1
106 192-9566 Brush housing 1
108 292-5103 Supporting angle 1
109 192-0364 Screw M8 x 12mm socket head 2
112 192-5626 Poly v-belt 1
113 192-4607 Intermediate pulley 1
114 192-0483 Retaining ring 1
115 192-0484 Flanged bearing 1
116 192-1455 Screw M10 x 16mm hex head 4
117 192-1285 Screw M6 x 25mm hex head 3
118 192-9567 Base plate 1
120 192-5623 Poly v-belt 1
121 192-0590 Pulley axle 2
122 192-0364 Screw M8 x 12mm socket head 9
123 192-0348 Screw M8 x 12mm truss head 9
124 192-5814 Pulley with bearings (bearings not available separate) 2
125 192-0503 Retaining ring 2
126 192-6320 Sealing ring 2
127 192-0492 Buffer 2
128 192-3032 Drive hub 2
129 192-2728 Flanged bushing 2
130 192-9568 Bracket 1
134 192-0481 Ball bearing 2
135 192-0485 Retaining ring 1
136 192-1677 Angled nipple 2
137 192-0482 Spacer 1
138 192-2826 Clamp 1
139 192-4543 Axle idler kit 1 (includes 141)
140 192-6321 Sealing ring 2
141 192-0075 Retaining ring 1
142 192-9569 Protective cover 1
145 192-9265 Tension spring 2
146 192-9570 Bracket 1
148 292-0068 Pulley kit (includes bearings and clips) 2
149 192-0162 Screw M5 x 8 self tapping forming 1
150 292-8039 Clamp 1
160 292-9104 Brush drive 1 (includes 101-150)
N/S 192-1872 Grease 1

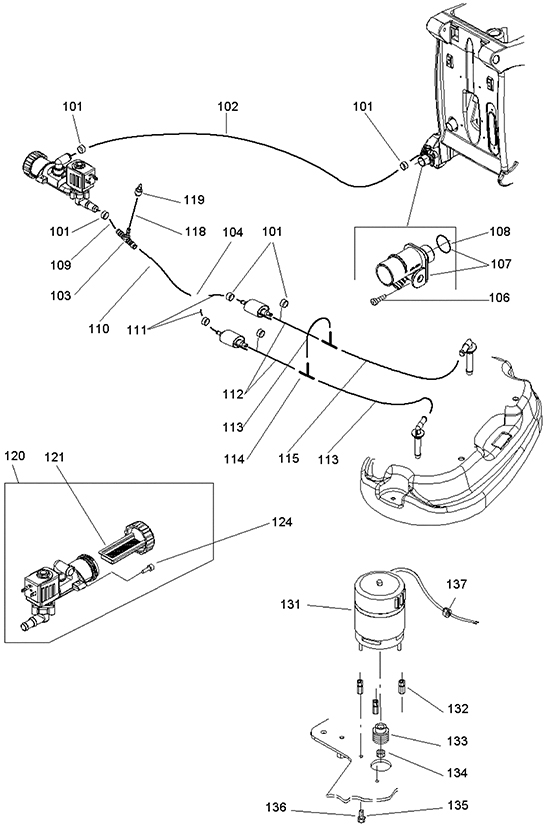

Hose and Filter Assembly - 192-9042
RefNbr Part Number Description Req Notes
101 192-0334 Hose clamp 7
102a 192-0400 Wire reinforced hose (sold by the inch) 30 inches
102b 192-0400 Wire reinforced hose (sold by the inch) 53 inches (DK)
103 192-0894 T-nipple 1
104 192-7548 Y-pipe 1
106 192-1561 Screw 60 x 20 torx head 1
107 192-9243 Discharge housing includes o-rings 1
108 192-5369 O-ring 1
109 192-0404 Wire reinforced hose (sold by the inch) 6 inches
110 192-0404 Wire reinforced hose (sold by the inch) 17 inches
111 192-4461 Tygon hose (sold by the inch) 2 inches
112 192-4461 Tygon hose (sold by the inch) 2 inches
113 192-0404 Wire reinforced hose (sold by the inch) 6 inches
114 192-7109 T-nipple 2
115 192-0404 Wire reinforced hose (sold by the inch) 10 inches
118 192-0639 Solution hose (sold by the inch) 46 inches
119 192-1601 Check valve 1
120 192-9276 Solenoid and filter assembly 1 (includes 121-124)
121 292-0082 Filter kit 1
124 192-6279 Screw 40 x 25 torx head 2
131 192-5078 24V brush motor with noise suppression 1
132 192-8633 Stud 3
133 192-5815 Pulley 1
134 192-0800 Nut M12 left hand thread hex 1
135 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
136 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
137 192-0712 Coil with toric core 1

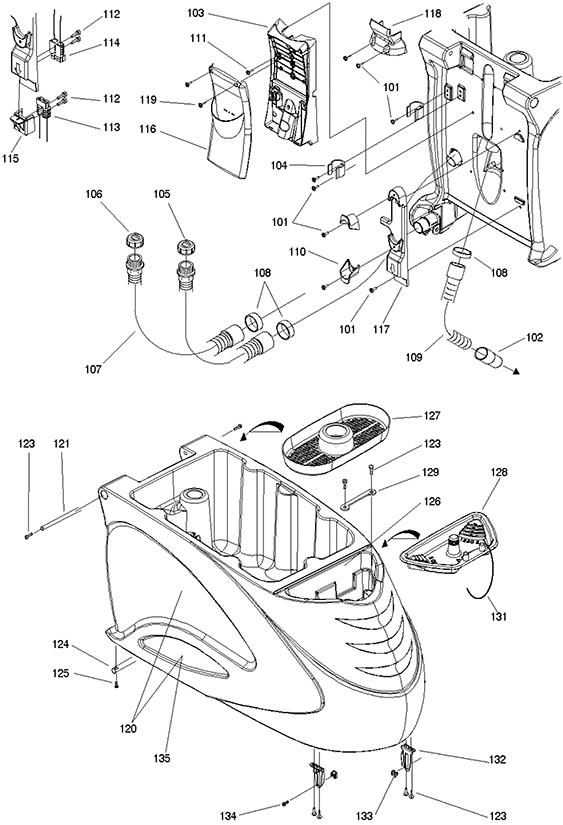

Tank Assembly - 192-9043
RefNbr Part Number Description Req Notes
101 192-1561 Screw 60 x 20 torx head 10
102 192-0113 Hose cuff 1
103 292-5408 Rear cover 1
104 192-0099 Hose holder 2
105 192-0237 Threaded cap (red) 1
106 192-0236 Threaded cap (blue) 1
107a 192-0979 Hose 2
107b 192-8971 Drain hose with attached gray cap 2 (optional)
108 192-0130 Hose clamp 3
109 192-4351 Hose 1
110 192-2550 Holder 2 (BMS)
111 192-1557 Screw 60 x 35 torx head 4
112 192-0549 Screw KA 35 x 20 4
113 192-0389 50amp charger plug SB50 with hole (gray) 1
14 192-0388 50amp charger plug SB50 with post (gray) 1
115 192-5595 Charger plug housing 1
116 292-5410 Cover 1
117 292-5411 Cover 1
118 292-0859 Cover 1
119 192-1595 Screw M40 x 16mm torx head 2
120 192-9571 Tank 1
121 192-9538 Axle 1
123 192-1561 Screw 60 x 20 torx head 8
124 192-1773 Axle 1
125 192-1509 Screw 60 x 25 torx head 2
126 192-0185 Decal (blue) 1
127 192-1511 Basket filter 1
128 192-9572 Dosing cup 1
129 192-1513 Locking plate 1
131 292-0096 Cord 1
132 192-9541 Bracket 2
133 192-2591 Nut M8 caged 2
134 192-1524 Screw M8 x 20mm flange socket head 2
135 292-0860 1255B decal 1

Electrical Parts - 192-9044
RefNbr Part Number Description Req Notes
101 192-4577 Insulating nut 1
102 192-1420 75amp fuse 1
103 192-2505 Battery cable clamp 1
104 192-1926 Negative battery clamp 1
105 192-1927 Positive battery clamp 1
106 192-9355 Screw M6 x 40mm hex head 1
107 192-0151 Nut M6 hex 1
108 192-0886 Battery post cover 1
110 192-0389 50amp charger plug SB50 with hole (gray) 1
111 192-0388 50amp charger plug SB50 with post (gray) 1
112 192-1406 Battery cable 2
113 292-5708 Key switch 1 (includes 114, 116-117)
114a 192-1592 Plastic key 1 (series 1)
114b 292-5254 Steel key 1 (series 2)
116 192-8584 Screw 40 x 8 1
117 192-0149 Washer 1
118 192-7083 T-handle 1 (optional)
120 192-9329 Communication cable (dashboard to power electronic) 1
121 192-9573 Wiring harness 1 (includes 111, 125)
122 192-9549 Cable (dashboard to charger) 1 (includes 125)
123 192-2567 Battery connection harness 1
125 192-0712 Coil with toric core 1
131 192-3013 Brush coupling 1
132 192-0445 Screw M5 x 25mm pan head tap 4
133 292-0861 Wire harness 1
134 292-0862 Connecting cable 1
135 292-5424 Jumper (8 pins) 1
136 292-8682 Ring (yellow) 1
137 192-9430 11 inch pad driver 1 (includes 131-132, 136)

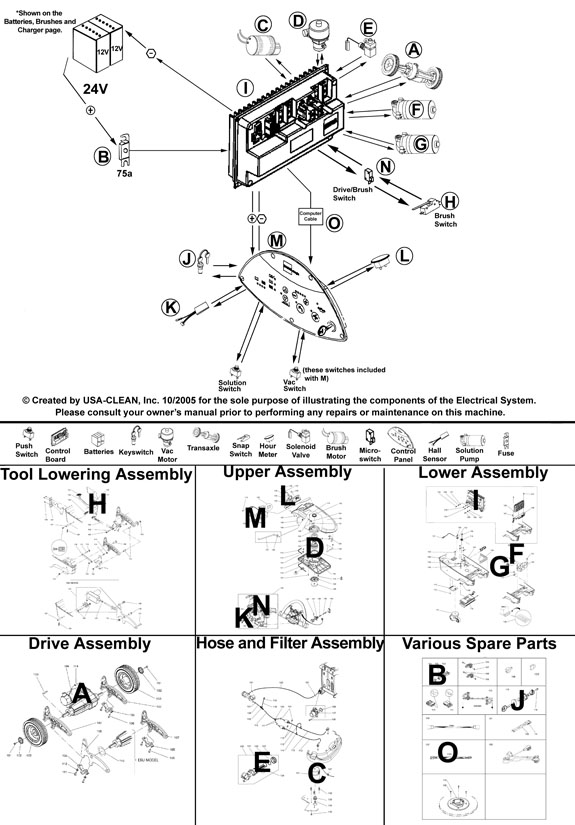

Electrical Diagram - 192-9045
RefNbr Part Number Description Req Notes
102 192-1420 75amp fuse 1
120 192-9329 Communication cable (dashboard to power electronic) 1
121 192-9573 Wiring harness 1
122 192-9549 Cable (dashboard to charger) 1
123 192-2567 Battery connection harness 1
126 292-8043 Wire harness 1 (non-BMS)
133 292-0861 Wire harness 1
134 292-0862 Connecting cable 1
135 292-5424 Jumper (8 pins) 1

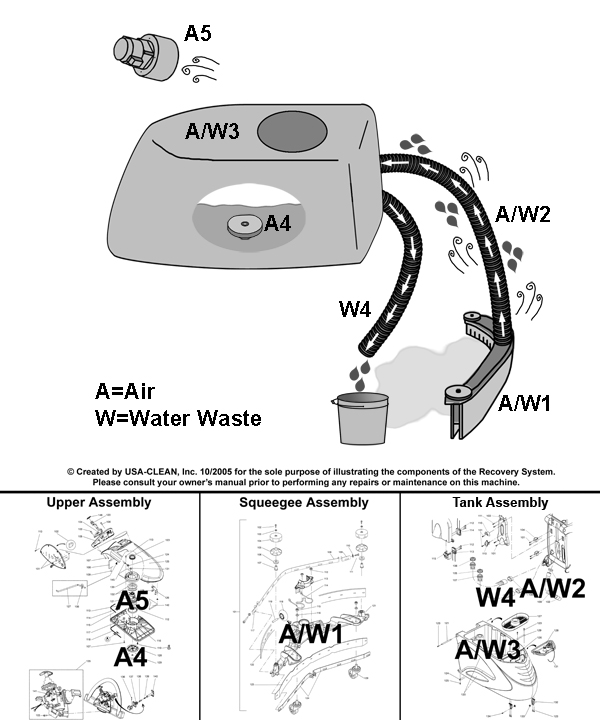

- Simplified Solution System -

RefNbr Part Number Description Req Notes

- Simplified Recovery System -

RefNbr Part Number Description Req Notes

- Simplified Electrical System -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Chargers - 192-9621
RefNbr Part Number Description Req Notes
162-6022 12V 102Ah gel battery (SNSR) 4
162-0042 12V 115Ah AGM battery (Group 31) (SNSR) 2 (quantity of 2 for series) (quantity of 4 for parallel and series combination)
292-5395 1255 wet battery kit 1
292-9114 24V 52ah lithium battery 1
192-9564 24V 25amp onboard battery charger kit 1
292-4009 24V 25 amp Lester Summit battery charger model 27940 1
162-5140 24V 25amp battery charger with small SB50 gray plug 1
292-0054 24V 25amp AGM SCR battery charger with small SB50 gray plug 1 (for 4 batteries)
292-5286 24V 25amp onboard battery charger 1
192-8778 24V 12amp SPE smart charger (off board) 1 (for 12V batteries)
292-8595 24V 13Ah onboard battery charger 1 (for Li-Ion battery conversion) (before SN 36174 with onboard charger) (charger must be replaced)
292-4738 24V 30amp Li-ion off board battery charger 1 (any of the on-board charger units can be replaced with an external charger) (f the serial number is before SN 32227, the internal charger needs to be removed and only the external charger can be used)
192-9431 11 inch hard nylon scrubbing brush (white) 2
192-9433 11 inch progrit scrubbing brush (gray) 2
192-9432 11 inch soft nylon scrubbing brush (white) 2

- Frequently Replaced Parts - 192-9944
RefNbr Part Number Description Req Notes
162-6022 12V 102Ah gel battery (SNSR) 4
162-0042 12V 115Ah AGM battery (Group 31) (SNSR) 2 (quantity of 2 for series) (quantity of 4 for parallel and series combination)
292-5395 1255 wet battery kit 1
292-9114 24V 52ah lithium battery 1
192-9564 24V 25amp onboard battery charger kit 1
292-4009 24V 25 amp Lester Summit battery charger model 27940 1
162-5140 24V 25amp battery charger with small SB50 gray plug 1
292-0054 24V 25amp AGM SCR battery charger with small SB50 gray plug 1 (for 4 batteries)
292-5286 24V 25amp onboard battery charger 1
192-8778 24V 12amp SPE smart charger (off board) 1 (for 12V batteries)
292-8595 24V 13Ah onboard battery charger 1 (for Li-Ion battery conversion) (before SN 36174 with onboard charger) (charger must be replaced)
292-4738 24V 30amp Li-ion off board battery charger 1 (any of the on-board charger units can be replaced with an external charger) (f the serial number is before SN 32227, the internal charger needs to be removed and only the external charger can be used)
192-0389 50amp charger plug SB50 with hole (gray) 1
192-0388 50amp charger plug SB50 with post (gray) 1
998-0010 Battery jumper cable - ring type (red) 1
292-5424 Jumper (8 pins) 1
292-5708 Key switch 1
192-1592 Plastic key 1
292-5254 Steel key 1
192-8721 Microswitch 1
192-9276 Solenoid and filter assembly 1
292-0082 Filter kit 1
192-1601 Check valve 1
192-1483 Squeegee blade 32 1/4 inch front 1
192-9563 Squeegee blade front 1
292-8031 Squeegee blade 1
192-1484 Squeegee blade 33 3/4 inch rear 1
292-8032 Squeegee blade 1
192-9555 Tank cover 1
192-6334 Sealing profile (sold by the inch) 80 in
192-0979 Hose 2
192-8971 Drain hose with attached gray cap 2 (optional)
192-0770 24V 2 stage vacuum motor 1 (series 1)
292-8095 24V 16amp vacuum motor 1 (series 2)
192-2665 Carbon brush (pkg of 2) 1
192-9431 11 inch hard nylon scrubbing brush (white) 2
192-9433 11 inch progrit scrubbing brush (gray) 2
192-9432 11 inch soft nylon scrubbing brush (white) 2
192-9430 11 inch pad driver 1
991-2214 Center-Lok II pad holder - left hand thread (red) 1
991-2201 Center-Lok II pad holder - right hand thread (black) 1
991-2206 Center-Lok 3 pad holder 1

- Pads - 11 inch - 255-1100
RefNbr Part Number Description Req Notes
01 255-1140 11 inch aqua plus burnishing pad (pkg of 20)
02 255-1890 18 inch premium black stripping pad (pkg of 5)
03 255-1142 11 inch Blue Jay burnishing pad (pkg of 20)
04 255-1064 10 inch Blue ace pad (pkg of 20)
05 255-1112 11 inch Cure white pad (pkg of 5)
06 255-1177 11 inch Diamondback extreme stripping pad (pkg of 20)
07 255-1138 11 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1121 11 inch gorilla lite burnishing pad (pkg of 20)
09 255-1150 11 inch gorilla spray buff/polish/burnish pad (pkg of 20)
10 255-1165 11 inch Heat concrete bonding pad (pkg of 5)
11 255-1130 11 inch jaguar burnishing pad (pkg of 20)
12 255-1190 11 inch premium black stripping pad (pkg of 20)
13 255-1170 11 inch premium blue cleaning pad (pkg of 20)
14 255-1192 11 inch premium brown stripping pad (pkg of 20)
15 255-1180 11 inch premium green scrubbing pad (pkg of 20)
16 255-1160 11 inch premium red scrubbing pad (pkg of 5)
17 255-1152 11 inch premium tan polishing pad (pkg of 20)
18 255-1120 11 inch premium white polishing pad (pkg of 20)
19 255-1147 11 inch Redwood maroon floor prep pad (pkg of 10)
20 255-1155 11 inch Ruff non-abrasive brush pad (pkg of 2)
21 255-1111 11 inch superspeed rubberized pad (pkg of 20)
22 255-9039 11 x 14 inch non-abrasive brush pad (pkg of 2) (OBSOLETE)
23 255-9528 11 inch Diamond by Gorilla 11000 Grit (pkg of 2)
24 255-9525 11 inch Diamond by Gorilla 1500 Grit (pkg of 2)
25 255-9522 11 inch Diamond by Gorilla 200 Grit (pkg of 2)
26 255-9526 11 inch Diamond by Gorilla 3000 Grit (pkg of 2)
27 255-9523 11 inch Diamond by Gorilla 400 Grit (pkg of 2)
28 255-9524 11 inch Diamond by Gorilla 800 Grit (pkg of 2)
29 255-9527 11 inch Diamond by Gorilla 8000 Grit (pkg of 2)
30 255-9636 11 inch Diamond starter pack (1 of each grit)
31 255-1115 11 inch Duala clean and shine pad - low speed (pkg of 5)
32 255-1116 11 inch 2001 Duala clean and shine pad-high speed (pkg of 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

Squeegee Assembly - Series 2 - 292-6706
RefNbr Part Number Description Req Notes
000 292-5665 Squeegee assembly 1 (includes 101-701)
101 292-5662 Squeegee weldment 1
102 192-0104 Screw M8 x 45mm socket head cap 2
103 192-0105 Washer M8 2
104 192-1397 Guide wheel 2
105 192-0108 Retaining disc 2
106 192-1344 Wave washer 2
107 192-1354 Bushing 2
110 292-5664 Adapter 1
112 192-1524 Screw M8 x 20mm flange socket head 2
113 192-9515 Cover 1
114 192-9516 Click spring 1
115 192-6339 Nut M10 self locking 3
116 192-0496 Washer M10 3
120 292-8549 Hook 2
130 192-0278 Screw M8 x 25mm socket head 2
140 192-7424 Washer 8.4/20 2
150 292-8548 Caster wheel 3
160 292-8550 Locking bolt 3
201a 192-1483 Squeegee blade 32 1/4 inch front 1
201b 292-8031 Squeegee blade 1 (optional)
301a 192-1484 Squeegee blade 33 3/4 inch rear 1
301b 292-8032 Squeegee blade 1 (optional)
310 192-9563 Squeegee blade front 1 (option)
401 292-5663 Squeegee retainer 1
501 292-0005 Screw M10 hex head 2
601 192-0075 Retaining ring 2
701 292-0004 Star knob 2

- Manufacturer Recommended Stocking Parts - 392-9995
RefNbr Part Number Description Req Notes
1 192-9328 Jumper (OBSOLETE) 1 (troubleshooting tool -6 pin dashboard)
2 292-5424 Jumper (8 pins) 1 (troubleshooting tool -8 pin BMS harness)
3 292-9107 Flange bolt (OBSOLETE) 2
4 192-1484 Squeegee blade 33 3/4 inch rear 1
5 192-1483 Squeegee blade 32 1/4 inch front 1
6 292-8548 Caster wheel 3
7 192-9516 Click spring 1
8 192-8971 Drain hose with attached gray cap 1
9 192-0133 Hose 1
10 292-5254 Steel key 1
Webpage Problem Reporting
